(2019年5月18日)
■使用ソフト
・Visual Studio Community 2019
■言語
・C/C++
■Windows SDK バージョン
・10.0.17763.0
※Windows SDK バージョンの変更方法
■手順
１．以下をベースにコード変更する。
【C++】 DirectX11 - 四角形の描画（インデックスバッファ）
２．以下の6つのファイルを作成してビルドを行う。
（１）Main.h //前回から変更なし
（２）Main.cpp //前回から変更なし
（３）DirectX.h //前回から変更なし
（４）DirectX.cpp
（５）VertexShader.hlsl //前回から変更なし
（６）PixelShader.hlsl //前回から変更なし
（１）Main.h
#pragma once
#include <windows.h>
#pragma comment(lib,"winmm.lib")
//--------------------------------------------------------------------------------------
// Windowクラス：Window関係
//--------------------------------------------------------------------------------------
class Window
{
public:
HRESULT InitWindow(HINSTANCE hInstance, int nCmdShow);
void InitFps();
void CalculationFps();
void CalculationSleep();
void CalculationFrameTime();
static HWND GethWnd();
static int GetClientWidth();
static int GetClientHeight();
static double GetFps();
static double GetFrameTime();
private:
LARGE_INTEGER m_freq = { 0 };
LARGE_INTEGER m_starttime = { 0 };
LARGE_INTEGER m_nowtime = { 0 };
LARGE_INTEGER m_frametime_a = { 0 };
LARGE_INTEGER m_frametime_b = { 0 };
int m_iCount = 0;
static HWND g_hWnd;
static int g_iClientWidth;
static int g_iClientHeight;
static double g_dFps;
static double g_dFrameTime;
};
#include <windows.h>
#pragma comment(lib,"winmm.lib")
//--------------------------------------------------------------------------------------
// Windowクラス：Window関係
//--------------------------------------------------------------------------------------
class Window
{
public:
HRESULT InitWindow(HINSTANCE hInstance, int nCmdShow);
void InitFps();
void CalculationFps();
void CalculationSleep();
void CalculationFrameTime();
static HWND GethWnd();
static int GetClientWidth();
static int GetClientHeight();
static double GetFps();
static double GetFrameTime();
private:
LARGE_INTEGER m_freq = { 0 };
LARGE_INTEGER m_starttime = { 0 };
LARGE_INTEGER m_nowtime = { 0 };
LARGE_INTEGER m_frametime_a = { 0 };
LARGE_INTEGER m_frametime_b = { 0 };
int m_iCount = 0;
static HWND g_hWnd;
static int g_iClientWidth;
static int g_iClientHeight;
static double g_dFps;
static double g_dFrameTime;
};
（２）Main.cpp
#include "Main.h"
#include "DirectX.h"
//--------------------------------------------------------------------------------------
// 静的メンバ
//--------------------------------------------------------------------------------------
HWND Window::g_hWnd = nullptr;//ウィンドウハンドル
int Window::g_iClientWidth = 800;//クライアント領域の横幅
int Window::g_iClientHeight = 600;//クライアント領域の高さ
double Window::g_dFps = 0;//FPS
double Window::g_dFrameTime = 0;//1フレームあたりの時間
//--------------------------------------------------------------------------------------
// 前方宣言
//--------------------------------------------------------------------------------------
LRESULT CALLBACK WndProc(HWND, UINT, WPARAM, LPARAM);
//--------------------------------------------------------------------------------------
// wWinMain()関数：エントリーポイント
//--------------------------------------------------------------------------------------
int WINAPI wWinMain(_In_ HINSTANCE hInstance, _In_opt_ HINSTANCE hPrevInstance, _In_ LPWSTR lpCmdLine, _In_ int nCmdShow)
{
if (FAILED(CoInitialize(nullptr)))//COMの初期化
return 0;
Window win;
if (FAILED(win.InitWindow(hInstance, nCmdShow)))
return 0;
DirectX11 dx;
if (FAILED(dx.InitDevice()))
return 0;
win.InitFps();
// メインメッセージループ
MSG msg = { 0 };
while (WM_QUIT != msg.message)
{
if (PeekMessage(&msg, nullptr, 0, 0, PM_REMOVE))
{
TranslateMessage(&msg);
DispatchMessage(&msg);
}
else
{
win.CalculationFps();
win.CalculationFrameTime();
dx.Render();
win.CalculationSleep();
}
}
CoUninitialize();//COMの終了処理
return (int)msg.wParam;
}
//--------------------------------------------------------------------------------------
// WndProc()関数：ウィンドウプロシージャ
//--------------------------------------------------------------------------------------
LRESULT CALLBACK WndProc(HWND hWnd, UINT uiMessage, WPARAM wParam, LPARAM lParam)
{
PAINTSTRUCT ps;
HDC hdc;
switch (uiMessage)
{
case WM_PAINT:
hdc = BeginPaint(hWnd, &ps);
EndPaint(hWnd, &ps);
break;
case WM_DESTROY:
PostQuitMessage(0);
break;
default:
return DefWindowProc(hWnd, uiMessage, wParam, lParam);
}
return 0;
}
//--------------------------------------------------------------------------------------
// Window::InitWindow()関数：ウィンドウの表示
//--------------------------------------------------------------------------------------
HRESULT Window::InitWindow(HINSTANCE hInstance, int nCmdShow)
{
WNDCLASSEX wcex;
wcex.cbSize = sizeof(WNDCLASSEX);
wcex.style = CS_HREDRAW | CS_VREDRAW;
wcex.lpfnWndProc = WndProc;
wcex.cbClsExtra = 0;
wcex.cbWndExtra = 0;
wcex.hInstance = hInstance;
wcex.hIcon = nullptr;
wcex.hCursor = LoadCursor(nullptr, IDC_ARROW);
wcex.hbrBackground = (HBRUSH)(COLOR_WINDOW + 1);
wcex.lpszMenuName = nullptr;
wcex.lpszClassName = L"WindowClass";
wcex.hIconSm = nullptr;
if (!RegisterClassEx(&wcex))
return E_FAIL;
RECT rc = { 0, 0, g_iClientWidth, g_iClientHeight };
AdjustWindowRect(&rc, WS_OVERLAPPEDWINDOW, FALSE);
g_hWnd = CreateWindow(L"WindowClass", L"DirectXプログラミング",
WS_OVERLAPPED | WS_CAPTION | WS_SYSMENU | WS_MINIMIZEBOX,
CW_USEDEFAULT, CW_USEDEFAULT, rc.right - rc.left, rc.bottom - rc.top, nullptr, nullptr, hInstance,
nullptr);
if (!g_hWnd)
return E_FAIL;
ShowWindow(g_hWnd, nCmdShow);
return S_OK;
}
//--------------------------------------------------------------------------------------
// Window::InitFps()関数：FPS計測の初期化
//--------------------------------------------------------------------------------------
void Window::InitFps()
{
QueryPerformanceFrequency(&m_freq);
QueryPerformanceCounter(&m_starttime);//現在の時間を取得（1フレーム目）
}
//--------------------------------------------------------------------------------------
// Window::CalculationFps()関数：FPS計測
//--------------------------------------------------------------------------------------
void Window::CalculationFps()
{
if (m_iCount == 60)//カウントが60の時の処理
{
QueryPerformanceCounter(&m_nowtime);//現在の時間を取得（60フレーム目）
//FPS = 1秒 / 1フレームの描画にかかる時間
// = 1000ms / ((現在の時間ms - 1フレーム目の時間ms) / 60フレーム)
g_dFps = 1000.0 / (static_cast<double>((m_nowtime.QuadPart - m_starttime.QuadPart) * 1000 / m_freq.QuadPart) / 60.0);
m_iCount = 0;//カウントを初期値に戻す
m_starttime = m_nowtime;//1フレーム目の時間を現在の時間にする
}
m_iCount++;//カウント+1
}
//--------------------------------------------------------------------------------------
// Window::CalculationSleep()関数：Sleepさせる時間の計算
//--------------------------------------------------------------------------------------
void Window::CalculationSleep()
{
QueryPerformanceCounter(&m_nowtime);//現在の時間を取得
//Sleepさせる時間ms = 1フレーム目から現在のフレームまでの描画にかかるべき時間ms - 1フレーム目から現在のフレームまで実際にかかった時間ms
// = (1000ms / 60)*フレーム数 - (現在の時間ms - 1フレーム目の時間ms)
DWORD dwSleepTime = static_cast<DWORD>((1000.0 / 60.0) * m_iCount - (m_nowtime.QuadPart - m_starttime.QuadPart) * 1000 / m_freq.QuadPart);
if (dwSleepTime > 0 && dwSleepTime < 18)//大きく変動がなければSleepTimeは1～17の間に納まる
{
timeBeginPeriod(1);
Sleep(dwSleepTime);
timeEndPeriod(1);
}
else//大きく変動があった場合
{
timeBeginPeriod(1);
Sleep(1);
timeEndPeriod(1);
}
}
//--------------------------------------------------------------------------------------
// Window::CalculationFrameTime()関数：1フレームあたりの時間の計測
//--------------------------------------------------------------------------------------
void Window::CalculationFrameTime()
{
static int iFlg;
if (iFlg == 0)
{
QueryPerformanceCounter(&m_frametime_a);
iFlg = 1;
}
QueryPerformanceCounter(&m_frametime_b);
g_dFrameTime = (m_frametime_b.QuadPart - m_frametime_a.QuadPart) * 1000.0 / m_freq.QuadPart;
m_frametime_a = m_frametime_b;
}
//--------------------------------------------------------------------------------------
// Window::GethWnd()関数：hWndの取得
//--------------------------------------------------------------------------------------
HWND Window::GethWnd()
{
return g_hWnd;
}
//--------------------------------------------------------------------------------------
// Window::GetClientWidth()関数：クライアント領域の横幅の取得
//--------------------------------------------------------------------------------------
int Window::GetClientWidth()
{
return g_iClientWidth;
}
//--------------------------------------------------------------------------------------
// Window::GetClientHeight()関数：クライアント領域の高さの取得
//--------------------------------------------------------------------------------------
int Window::GetClientHeight()
{
return g_iClientHeight;
}
//--------------------------------------------------------------------------------------
// Window::GetFps()関数：FPSの取得
//--------------------------------------------------------------------------------------
double Window::GetFps()
{
return g_dFps;
}
//--------------------------------------------------------------------------------------
// Window::GetFrameTime()関数：1フレームあたりの時間の取得
//--------------------------------------------------------------------------------------
double Window::GetFrameTime()
{
return g_dFrameTime;
}
#include "DirectX.h"
//--------------------------------------------------------------------------------------
// 静的メンバ
//--------------------------------------------------------------------------------------
HWND Window::g_hWnd = nullptr;//ウィンドウハンドル
int Window::g_iClientWidth = 800;//クライアント領域の横幅
int Window::g_iClientHeight = 600;//クライアント領域の高さ
double Window::g_dFps = 0;//FPS
double Window::g_dFrameTime = 0;//1フレームあたりの時間
//--------------------------------------------------------------------------------------
// 前方宣言
//--------------------------------------------------------------------------------------
LRESULT CALLBACK WndProc(HWND, UINT, WPARAM, LPARAM);
//--------------------------------------------------------------------------------------
// wWinMain()関数：エントリーポイント
//--------------------------------------------------------------------------------------
int WINAPI wWinMain(_In_ HINSTANCE hInstance, _In_opt_ HINSTANCE hPrevInstance, _In_ LPWSTR lpCmdLine, _In_ int nCmdShow)
{
if (FAILED(CoInitialize(nullptr)))//COMの初期化
return 0;
Window win;
if (FAILED(win.InitWindow(hInstance, nCmdShow)))
return 0;
DirectX11 dx;
if (FAILED(dx.InitDevice()))
return 0;
win.InitFps();
// メインメッセージループ
MSG msg = { 0 };
while (WM_QUIT != msg.message)
{
if (PeekMessage(&msg, nullptr, 0, 0, PM_REMOVE))
{
TranslateMessage(&msg);
DispatchMessage(&msg);
}
else
{
win.CalculationFps();
win.CalculationFrameTime();
dx.Render();
win.CalculationSleep();
}
}
CoUninitialize();//COMの終了処理
return (int)msg.wParam;
}
//--------------------------------------------------------------------------------------
// WndProc()関数：ウィンドウプロシージャ
//--------------------------------------------------------------------------------------
LRESULT CALLBACK WndProc(HWND hWnd, UINT uiMessage, WPARAM wParam, LPARAM lParam)
{
PAINTSTRUCT ps;
HDC hdc;
switch (uiMessage)
{
case WM_PAINT:
hdc = BeginPaint(hWnd, &ps);
EndPaint(hWnd, &ps);
break;
case WM_DESTROY:
PostQuitMessage(0);
break;
default:
return DefWindowProc(hWnd, uiMessage, wParam, lParam);
}
return 0;
}
//--------------------------------------------------------------------------------------
// Window::InitWindow()関数：ウィンドウの表示
//--------------------------------------------------------------------------------------
HRESULT Window::InitWindow(HINSTANCE hInstance, int nCmdShow)
{
WNDCLASSEX wcex;
wcex.cbSize = sizeof(WNDCLASSEX);
wcex.style = CS_HREDRAW | CS_VREDRAW;
wcex.lpfnWndProc = WndProc;
wcex.cbClsExtra = 0;
wcex.cbWndExtra = 0;
wcex.hInstance = hInstance;
wcex.hIcon = nullptr;
wcex.hCursor = LoadCursor(nullptr, IDC_ARROW);
wcex.hbrBackground = (HBRUSH)(COLOR_WINDOW + 1);
wcex.lpszMenuName = nullptr;
wcex.lpszClassName = L"WindowClass";
wcex.hIconSm = nullptr;
if (!RegisterClassEx(&wcex))
return E_FAIL;
RECT rc = { 0, 0, g_iClientWidth, g_iClientHeight };
AdjustWindowRect(&rc, WS_OVERLAPPEDWINDOW, FALSE);
g_hWnd = CreateWindow(L"WindowClass", L"DirectXプログラミング",
WS_OVERLAPPED | WS_CAPTION | WS_SYSMENU | WS_MINIMIZEBOX,
CW_USEDEFAULT, CW_USEDEFAULT, rc.right - rc.left, rc.bottom - rc.top, nullptr, nullptr, hInstance,
nullptr);
if (!g_hWnd)
return E_FAIL;
ShowWindow(g_hWnd, nCmdShow);
return S_OK;
}
//--------------------------------------------------------------------------------------
// Window::InitFps()関数：FPS計測の初期化
//--------------------------------------------------------------------------------------
void Window::InitFps()
{
QueryPerformanceFrequency(&m_freq);
QueryPerformanceCounter(&m_starttime);//現在の時間を取得（1フレーム目）
}
//--------------------------------------------------------------------------------------
// Window::CalculationFps()関数：FPS計測
//--------------------------------------------------------------------------------------
void Window::CalculationFps()
{
if (m_iCount == 60)//カウントが60の時の処理
{
QueryPerformanceCounter(&m_nowtime);//現在の時間を取得（60フレーム目）
//FPS = 1秒 / 1フレームの描画にかかる時間
// = 1000ms / ((現在の時間ms - 1フレーム目の時間ms) / 60フレーム)
g_dFps = 1000.0 / (static_cast<double>((m_nowtime.QuadPart - m_starttime.QuadPart) * 1000 / m_freq.QuadPart) / 60.0);
m_iCount = 0;//カウントを初期値に戻す
m_starttime = m_nowtime;//1フレーム目の時間を現在の時間にする
}
m_iCount++;//カウント+1
}
//--------------------------------------------------------------------------------------
// Window::CalculationSleep()関数：Sleepさせる時間の計算
//--------------------------------------------------------------------------------------
void Window::CalculationSleep()
{
QueryPerformanceCounter(&m_nowtime);//現在の時間を取得
//Sleepさせる時間ms = 1フレーム目から現在のフレームまでの描画にかかるべき時間ms - 1フレーム目から現在のフレームまで実際にかかった時間ms
// = (1000ms / 60)*フレーム数 - (現在の時間ms - 1フレーム目の時間ms)
DWORD dwSleepTime = static_cast<DWORD>((1000.0 / 60.0) * m_iCount - (m_nowtime.QuadPart - m_starttime.QuadPart) * 1000 / m_freq.QuadPart);
if (dwSleepTime > 0 && dwSleepTime < 18)//大きく変動がなければSleepTimeは1～17の間に納まる
{
timeBeginPeriod(1);
Sleep(dwSleepTime);
timeEndPeriod(1);
}
else//大きく変動があった場合
{
timeBeginPeriod(1);
Sleep(1);
timeEndPeriod(1);
}
}
//--------------------------------------------------------------------------------------
// Window::CalculationFrameTime()関数：1フレームあたりの時間の計測
//--------------------------------------------------------------------------------------
void Window::CalculationFrameTime()
{
static int iFlg;
if (iFlg == 0)
{
QueryPerformanceCounter(&m_frametime_a);
iFlg = 1;
}
QueryPerformanceCounter(&m_frametime_b);
g_dFrameTime = (m_frametime_b.QuadPart - m_frametime_a.QuadPart) * 1000.0 / m_freq.QuadPart;
m_frametime_a = m_frametime_b;
}
//--------------------------------------------------------------------------------------
// Window::GethWnd()関数：hWndの取得
//--------------------------------------------------------------------------------------
HWND Window::GethWnd()
{
return g_hWnd;
}
//--------------------------------------------------------------------------------------
// Window::GetClientWidth()関数：クライアント領域の横幅の取得
//--------------------------------------------------------------------------------------
int Window::GetClientWidth()
{
return g_iClientWidth;
}
//--------------------------------------------------------------------------------------
// Window::GetClientHeight()関数：クライアント領域の高さの取得
//--------------------------------------------------------------------------------------
int Window::GetClientHeight()
{
return g_iClientHeight;
}
//--------------------------------------------------------------------------------------
// Window::GetFps()関数：FPSの取得
//--------------------------------------------------------------------------------------
double Window::GetFps()
{
return g_dFps;
}
//--------------------------------------------------------------------------------------
// Window::GetFrameTime()関数：1フレームあたりの時間の取得
//--------------------------------------------------------------------------------------
double Window::GetFrameTime()
{
return g_dFrameTime;
}
（３）DirectX.h
#pragma once
#pragma comment(lib,"d3d11.lib")
#pragma comment(lib,"d3dCompiler.lib")
#pragma comment(lib,"d2d1.lib")
#pragma comment(lib,"dwrite.lib")
#include <d3d11_1.h>
#include <d3dcompiler.h>
#include <directxmath.h>
#include <directxcolors.h>
#include <d2d1_1.h>
#include <dwrite.h>
#include <wchar.h>
#include <wrl/client.h>
#include <random>
//--------------------------------------------------------------------------------------
// 構造体
//--------------------------------------------------------------------------------------
struct SimpleVertex
{
DirectX::XMFLOAT3 Pos;
DirectX::XMFLOAT4 Color;
};
struct ConstantBuffer
{
DirectX::XMMATRIX world;
DirectX::XMMATRIX view;
DirectX::XMMATRIX projection;
};
//--------------------------------------------------------------------------------------
// DirectX11クラス：DirectX関係
//--------------------------------------------------------------------------------------
class DirectX11
{
public:
DirectX11();
~DirectX11();
HRESULT CompileShaderFromFile(const WCHAR* wcFileName, LPCSTR lpEntryPoint, LPCSTR lpShaderModel, ID3DBlob** D3DBlob);
HRESULT InitDevice();
void Render();
private:
//------------------------------------------------------------
// DirectX11とDirect2D 1.1の初期化
//------------------------------------------------------------
Microsoft::WRL::ComPtr<ID3D11DeviceContext> m_D3DDeviceContext;
Microsoft::WRL::ComPtr<ID2D1DeviceContext> m_D2DDeviceContext;
Microsoft::WRL::ComPtr<IDXGISwapChain1> m_DXGISwapChain1;
Microsoft::WRL::ComPtr<ID2D1Bitmap1> m_D2DBitmap1;
Microsoft::WRL::ComPtr<ID3D11RenderTargetView> m_D3DRenderTargetView;
Microsoft::WRL::ComPtr<ID3D11VertexShader> m_D3DVertexShader;
Microsoft::WRL::ComPtr<ID3D11PixelShader> m_D3DPixelShader;
Microsoft::WRL::ComPtr<ID3D11Buffer> m_D3DVertexBuffer;
Microsoft::WRL::ComPtr<ID3D11Buffer> m_D3DConstantBuffer;
DirectX::XMMATRIX m_matWorld;
DirectX::XMMATRIX m_matView;
DirectX::XMMATRIX m_matProjection;
//------------------------------------------------------------
// DirectWriteの初期化
//------------------------------------------------------------
Microsoft::WRL::ComPtr<IDWriteTextFormat> m_DWriteTextFormat;
Microsoft::WRL::ComPtr<ID2D1SolidColorBrush> m_D2DSolidBrush;
};
#pragma comment(lib,"d3d11.lib")
#pragma comment(lib,"d3dCompiler.lib")
#pragma comment(lib,"d2d1.lib")
#pragma comment(lib,"dwrite.lib")
#include <d3d11_1.h>
#include <d3dcompiler.h>
#include <directxmath.h>
#include <directxcolors.h>
#include <d2d1_1.h>
#include <dwrite.h>
#include <wchar.h>
#include <wrl/client.h>
#include <random>
//--------------------------------------------------------------------------------------
// 構造体
//--------------------------------------------------------------------------------------
struct SimpleVertex
{
DirectX::XMFLOAT3 Pos;
DirectX::XMFLOAT4 Color;
};
struct ConstantBuffer
{
DirectX::XMMATRIX world;
DirectX::XMMATRIX view;
DirectX::XMMATRIX projection;
};
//--------------------------------------------------------------------------------------
// DirectX11クラス：DirectX関係
//--------------------------------------------------------------------------------------
class DirectX11
{
public:
DirectX11();
~DirectX11();
HRESULT CompileShaderFromFile(const WCHAR* wcFileName, LPCSTR lpEntryPoint, LPCSTR lpShaderModel, ID3DBlob** D3DBlob);
HRESULT InitDevice();
void Render();
private:
//------------------------------------------------------------
// DirectX11とDirect2D 1.1の初期化
//------------------------------------------------------------
Microsoft::WRL::ComPtr<ID3D11DeviceContext> m_D3DDeviceContext;
Microsoft::WRL::ComPtr<ID2D1DeviceContext> m_D2DDeviceContext;
Microsoft::WRL::ComPtr<IDXGISwapChain1> m_DXGISwapChain1;
Microsoft::WRL::ComPtr<ID2D1Bitmap1> m_D2DBitmap1;
Microsoft::WRL::ComPtr<ID3D11RenderTargetView> m_D3DRenderTargetView;
Microsoft::WRL::ComPtr<ID3D11VertexShader> m_D3DVertexShader;
Microsoft::WRL::ComPtr<ID3D11PixelShader> m_D3DPixelShader;
Microsoft::WRL::ComPtr<ID3D11Buffer> m_D3DVertexBuffer;
Microsoft::WRL::ComPtr<ID3D11Buffer> m_D3DConstantBuffer;
DirectX::XMMATRIX m_matWorld;
DirectX::XMMATRIX m_matView;
DirectX::XMMATRIX m_matProjection;
//------------------------------------------------------------
// DirectWriteの初期化
//------------------------------------------------------------
Microsoft::WRL::ComPtr<IDWriteTextFormat> m_DWriteTextFormat;
Microsoft::WRL::ComPtr<ID2D1SolidColorBrush> m_D2DSolidBrush;
};
（４）DirectX.cpp
#include "Main.h"
#include "DirectX.h"
//--------------------------------------------------------------------------------------
// DirectX11::DirectX11()関数：コンストラクタ
//--------------------------------------------------------------------------------------
DirectX11::DirectX11()
{
m_matWorld = DirectX::XMMatrixIdentity();
m_matView = DirectX::XMMatrixIdentity();
m_matProjection = DirectX::XMMatrixIdentity();
}
//--------------------------------------------------------------------------------------
// DirectX11::~DirectX11関数：デストラクタ
//--------------------------------------------------------------------------------------
DirectX11::~DirectX11()
{
}
//--------------------------------------------------------------------------------------
// DirectX11::CompileShaderFromFile()：シェーダのコンパイル
//--------------------------------------------------------------------------------------
HRESULT DirectX11::CompileShaderFromFile(const WCHAR* wcFileName, LPCSTR lpEntryPoint, LPCSTR lpShaderModel, ID3DBlob** D3DBlob)
{
HRESULT hr = S_OK;
DWORD dwShaderFlags = D3DCOMPILE_ENABLE_STRICTNESS;
#ifdef _DEBUG
dwShaderFlags |= D3DCOMPILE_DEBUG;
dwShaderFlags |= D3DCOMPILE_SKIP_OPTIMIZATION;
#endif
Microsoft::WRL::ComPtr<ID3DBlob> D3DErrorBlob;
hr = D3DCompileFromFile(wcFileName, nullptr, nullptr, lpEntryPoint, lpShaderModel,
dwShaderFlags, 0, D3DBlob, &D3DErrorBlob);
if (FAILED(hr))
{
if (D3DErrorBlob)
{
OutputDebugStringA(reinterpret_cast<const char*>(D3DErrorBlob->GetBufferPointer()));
}
return hr;
}
return S_OK;
}
//--------------------------------------------------------------------------------------
// DirectX11::InitDevice()：DirectX関係の初期化
//--------------------------------------------------------------------------------------
HRESULT DirectX11::InitDevice()
{
//------------------------------------------------------------
// DirectX11とDirect2D 1.1の初期化
//------------------------------------------------------------
HRESULT hr = S_OK;
UINT uiDeviceFlags = D3D11_CREATE_DEVICE_BGRA_SUPPORT;//DirectX11上でDirect2Dを使用するために必要
#ifdef _DEBUG
uiDeviceFlags |= D3D11_CREATE_DEVICE_DEBUG;
#endif
D3D_DRIVER_TYPE drivertypes[] =
{
D3D_DRIVER_TYPE_HARDWARE,
D3D_DRIVER_TYPE_WARP,
D3D_DRIVER_TYPE_REFERENCE,
};
UINT uiDriverTypesNum = ARRAYSIZE(drivertypes);
D3D_FEATURE_LEVEL featurelevels[] =
{
D3D_FEATURE_LEVEL_11_1,
D3D_FEATURE_LEVEL_11_0,
D3D_FEATURE_LEVEL_10_1,
D3D_FEATURE_LEVEL_10_0,
};
UINT uiFeatureLevelsNum = ARRAYSIZE(featurelevels);
Microsoft::WRL::ComPtr<ID3D11Device> D3DDevice;
D3D_DRIVER_TYPE drivertype = D3D_DRIVER_TYPE_NULL;
D3D_FEATURE_LEVEL featurelevel = D3D_FEATURE_LEVEL_11_0;
for (UINT uiDriverTypeIndex = 0; uiDriverTypeIndex < uiDriverTypesNum; uiDriverTypeIndex++)
{
drivertype = drivertypes[uiDriverTypeIndex];
hr = D3D11CreateDevice(nullptr, drivertype, nullptr, uiDeviceFlags, featurelevels, uiFeatureLevelsNum,
D3D11_SDK_VERSION, &D3DDevice, &featurelevel, &m_D3DDeviceContext);//&D3DDevice &m_D3DDeviceContext 初期化
if (hr == E_INVALIDARG)
{
hr = D3D11CreateDevice(nullptr, drivertype, nullptr, uiDeviceFlags, &featurelevels[1], uiFeatureLevelsNum - 1,
D3D11_SDK_VERSION, &D3DDevice, &featurelevel, &m_D3DDeviceContext);//&D3DDevice &m_D3DDeviceContext 初期化
}
if (SUCCEEDED(hr))
break;
}
if (FAILED(hr))
return hr;
Microsoft::WRL::ComPtr<IDXGIDevice2> DXGIDevice2;
hr = D3DDevice.As(&DXGIDevice2);//D3DDevice->QueryInterface()ではなくD3DDevice.As()、&DXGIDevice2 初期化
if (FAILED(hr))
return hr;
Microsoft::WRL::ComPtr<ID2D1Factory1> D2DFactory1;
D2D1_FACTORY_OPTIONS factoryoptions = {};
#ifdef _DEBUG
factoryoptions.debugLevel = D2D1_DEBUG_LEVEL_INFORMATION;
#endif
hr = D2D1CreateFactory(D2D1_FACTORY_TYPE_SINGLE_THREADED, factoryoptions, D2DFactory1.GetAddressOf());//&D2DFactory1ではなくD2DFactory1.GetAddressOf()
if (FAILED(hr))
return hr;
Microsoft::WRL::ComPtr<ID2D1Device> D2D1Device;
hr = D2DFactory1->CreateDevice(DXGIDevice2.Get(), &D2D1Device);//DXGIDevice2ではなくDXGIDevice2.Get()、&D2D1Device 初期化
if (FAILED(hr))
return hr;
hr = D2D1Device->CreateDeviceContext(D2D1_DEVICE_CONTEXT_OPTIONS_NONE, &m_D2DDeviceContext);//&m_D2DDeviceContext 初期化
if (FAILED(hr))
return hr;
Microsoft::WRL::ComPtr<IDXGIAdapter> DXGIAdapter;
hr = DXGIDevice2->GetAdapter(&DXGIAdapter);//&DXGIAdapter 初期化
if (FAILED(hr))
return hr;
Microsoft::WRL::ComPtr<IDXGIFactory2> DXGIFactory2;
hr = DXGIAdapter->GetParent(IID_PPV_ARGS(&DXGIFactory2));//&DXGIFactory2 初期化
if (FAILED(hr))
return hr;
DXGI_SWAP_CHAIN_DESC1 desc = {};
desc.Width = Window::GetClientWidth();
desc.Height = Window::GetClientHeight();
desc.Format = DXGI_FORMAT_B8G8R8A8_UNORM;
desc.Stereo = FALSE;
desc.SampleDesc.Count = 1;
desc.SampleDesc.Quality = 0;
desc.BufferUsage = DXGI_USAGE_RENDER_TARGET_OUTPUT;
desc.BufferCount = 2;
desc.Scaling = DXGI_SCALING_STRETCH;
desc.SwapEffect = DXGI_SWAP_EFFECT_DISCARD;
desc.AlphaMode = DXGI_ALPHA_MODE_UNSPECIFIED;
hr = DXGIFactory2->CreateSwapChainForHwnd(D3DDevice.Get(), Window::GethWnd(), &desc, nullptr, nullptr, &m_DXGISwapChain1);//D3DDeviceではなくD3DDevice.Get()、&m_DXGISwapChain1 初期化
if (FAILED(hr))
return hr;
(void)DXGIDevice2->SetMaximumFrameLatency(1);
DXGIFactory2->MakeWindowAssociation(Window::GethWnd(), DXGI_MWA_NO_ALT_ENTER);//Alt+Enter時フルスクリーンを無効
Microsoft::WRL::ComPtr<IDXGISurface2> DXGISurface2;
hr = m_DXGISwapChain1->GetBuffer(0, IID_PPV_ARGS(&DXGISurface2));//&DXGISurface2 初期化
if (FAILED(hr))
return hr;
hr = m_D2DDeviceContext->CreateBitmapFromDxgiSurface(DXGISurface2.Get(),//DXGISurface2ではなくDXGISurface2.Get()
D2D1::BitmapProperties1(D2D1_BITMAP_OPTIONS_TARGET | D2D1_BITMAP_OPTIONS_CANNOT_DRAW,
D2D1::PixelFormat(DXGI_FORMAT_B8G8R8A8_UNORM, D2D1_ALPHA_MODE_IGNORE)), &m_D2DBitmap1);//&m_D2DBitmap1 初期化
if (FAILED(hr))
return hr;
m_D2DDeviceContext->SetTarget(m_D2DBitmap1.Get());//D2DBitmap1ではなくD2DBitmap1.Get()
Microsoft::WRL::ComPtr<ID3D11Texture2D> D3DTexture2D;
hr = m_DXGISwapChain1->GetBuffer(0, IID_PPV_ARGS(&D3DTexture2D));//&D3DTexture2D 初期化
if (FAILED(hr))
return hr;
hr = D3DDevice->CreateRenderTargetView(D3DTexture2D.Get(), nullptr, &m_D3DRenderTargetView);//D3DTexture2DではなくD3DTexture2D.Get()、&m_D3DRenderTargetView 初期化
if (FAILED(hr))
return hr;
m_D3DDeviceContext->OMSetRenderTargets(1, m_D3DRenderTargetView.GetAddressOf(), nullptr);//&m_D3DRenderTargetViewではなくm_D3DRenderTargetView.GetAddressOf()
D3D11_VIEWPORT vp;
vp.Width = (FLOAT)Window::GetClientWidth();
vp.Height = (FLOAT)Window::GetClientHeight();
vp.MinDepth = 0.0f;
vp.MaxDepth = 1.0f;
vp.TopLeftX = 0;
vp.TopLeftY = 0;
m_D3DDeviceContext->RSSetViewports(1, &vp);
//バーテックスシェーダのコンパイル
Microsoft::WRL::ComPtr<ID3DBlob> D3DBlobVS;
hr = CompileShaderFromFile(L"VertexShader.hlsl", "main", "vs_5_0", &D3DBlobVS);
if (FAILED(hr))
return hr;
//バーテックスシェーダの作成
hr = D3DDevice->CreateVertexShader(D3DBlobVS->GetBufferPointer(), D3DBlobVS->GetBufferSize(), nullptr, &m_D3DVertexShader);
if (FAILED(hr))
return hr;
//インプットレイアウトの定義
D3D11_INPUT_ELEMENT_DESC layout[] =
{
//5番目のパラメータ：先頭からのバイト数4バイト(FLAOT)×3(RGB)=12
{ "POSITION", 0, DXGI_FORMAT_R32G32B32_FLOAT, 0, 0, D3D11_INPUT_PER_VERTEX_DATA, 0 },
{ "COLOR", 0, DXGI_FORMAT_R32G32B32A32_FLOAT, 0, 12, D3D11_INPUT_PER_VERTEX_DATA, 0 },
};
UINT uiElements = ARRAYSIZE(layout);
//インプットレイアウトの作成
Microsoft::WRL::ComPtr<ID3D11InputLayout> D3DInputLayout;
hr = D3DDevice->CreateInputLayout(layout, uiElements, D3DBlobVS->GetBufferPointer(),
D3DBlobVS->GetBufferSize(), &D3DInputLayout);
if (FAILED(hr))
return hr;
//インプットレイアウトの設定
m_D3DDeviceContext->IASetInputLayout(D3DInputLayout.Get());
//ピクセルシェーダのコンパイル
Microsoft::WRL::ComPtr<ID3DBlob> D3DBlobPS;
hr = CompileShaderFromFile(L"PixelShader.hlsl", "main", "ps_5_0", &D3DBlobPS);
if (FAILED(hr))
return hr;
//ピクセルシェーダの作成
hr = D3DDevice->CreatePixelShader(D3DBlobPS->GetBufferPointer(), D3DBlobPS->GetBufferSize(), nullptr, &m_D3DPixelShader);
if (FAILED(hr))
return hr;
//バーテックスバッファの作成
SimpleVertex vertices[] =
{
{ DirectX::XMFLOAT3(-0.5f, 0.5f, 0.0f), DirectX::XMFLOAT4(1.0f, 0.0f, 0.0f, 1.0f) },
{ DirectX::XMFLOAT3(0.5f, 0.5f, 0.0f), DirectX::XMFLOAT4(0.0f, 1.0f, 0.0f, 1.0f) },
{ DirectX::XMFLOAT3(-0.5f, -0.5f, 0.0f), DirectX::XMFLOAT4(0.0f, 0.0f, 1.0f, 1.0f) },
{ DirectX::XMFLOAT3(0.5f, -0.5f, 0.0f), DirectX::XMFLOAT4(1.0f, 1.0f, 0.0f, 1.0f) },
};
D3D11_BUFFER_DESC bd = {};
bd.Usage = D3D11_USAGE_DYNAMIC;
bd.ByteWidth = sizeof(SimpleVertex) * 4;
bd.BindFlags = D3D11_BIND_VERTEX_BUFFER;
bd.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
D3D11_SUBRESOURCE_DATA sub = {};
sub.pSysMem = vertices;
hr = D3DDevice->CreateBuffer(&bd, &sub, &m_D3DVertexBuffer);
if (FAILED(hr))
return hr;
//バーテックスバッファの設定
UINT uiStride = sizeof(SimpleVertex);
UINT uiOffset = 0;
m_D3DDeviceContext->IASetVertexBuffers(0, 1, m_D3DVertexBuffer.GetAddressOf(), &uiStride, &uiOffset);
//インデックスバッファの作成
Microsoft::WRL::ComPtr<ID3D11Buffer> D3DIndexBuffer;
WORD indices[] =
{
0,1,2,
2,1,3,
};
bd.Usage = D3D11_USAGE_DEFAULT;
bd.ByteWidth = sizeof(WORD) * 6;
bd.BindFlags = D3D11_BIND_INDEX_BUFFER;
bd.CPUAccessFlags = 0;
sub.pSysMem = indices;
hr = D3DDevice->CreateBuffer(&bd, &sub, &D3DIndexBuffer);
if (FAILED(hr))
return hr;
//インデックスバッファの設定
m_D3DDeviceContext->IASetIndexBuffer(D3DIndexBuffer.Get(), DXGI_FORMAT_R16_UINT, 0);
//プリミティブトポロジの設定
m_D3DDeviceContext->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
//コンスタントバッファの作成
bd.Usage = D3D11_USAGE_DYNAMIC;
bd.ByteWidth = sizeof(ConstantBuffer);
bd.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
bd.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
hr = D3DDevice->CreateBuffer(&bd, nullptr, &m_D3DConstantBuffer);
if (FAILED(hr))
return hr;
//--------------------------★追加↓--------------------------
//ラスタライザの作成
Microsoft::WRL::ComPtr<ID3D11RasterizerState> D3DRasterizerState;
D3D11_RASTERIZER_DESC ras = {};
//D3D11_FILL_WIREFRAME（ワイヤーフレーム） D3D11_FILL_SOLID（ソリッド）
ras.FillMode = D3D11_FILL_SOLID;
//D3D11_CULL_NONE（カリングなし：裏表描画） D3D11_CULL_FRONT（表面カリング：裏面描画） D3D11_CULL_BACK（裏面カリング：表面描画）
ras.CullMode = D3D11_CULL_NONE;
hr = D3DDevice->CreateRasterizerState(&ras, &D3DRasterizerState);
if (FAILED(hr))
return hr;
//ラスタライザの設定
m_D3DDeviceContext->RSSetState(D3DRasterizerState.Get());
//--------------------------★追加↑--------------------------
//ワールドマトリックスの設定
m_matWorld = DirectX::XMMatrixIdentity();
//ビューマトリックスの設定
DirectX::XMVECTOR vecEye = DirectX::XMVectorSet(0.0f, 0.0f, -3.0f, 0.0f);//カメラの位置//★---変更---
DirectX::XMVECTOR vecFocus = DirectX::XMVectorSet(0.0f, 0.0f, 0.0f, 0.0f);//カメラの焦点
DirectX::XMVECTOR vecUp = DirectX::XMVectorSet(0.0f, 1.0f, 0.0f, 0.0f);//カメラの上方向
m_matView = DirectX::XMMatrixLookAtLH(vecEye, vecFocus, vecUp);
//プロジェクションマトリックスの設定
m_matProjection = DirectX::XMMatrixPerspectiveFovLH(DirectX::XM_PIDIV4, static_cast<FLOAT>(Window::GetClientWidth()) / static_cast<FLOAT>(Window::GetClientHeight()), 0.01f, 100.0f);//★---変更---
//シェーダのセット
m_D3DDeviceContext->VSSetShader(m_D3DVertexShader.Get(), nullptr, 0);
m_D3DDeviceContext->VSSetConstantBuffers(0, 1, m_D3DConstantBuffer.GetAddressOf());
m_D3DDeviceContext->PSSetShader(m_D3DPixelShader.Get(), nullptr, 0);
//------------------------------------------------------------
// DirectWriteの初期化
//------------------------------------------------------------
Microsoft::WRL::ComPtr<IDWriteFactory> DWriteFactory;
hr = DWriteCreateFactory(DWRITE_FACTORY_TYPE_SHARED, __uuidof(IDWriteFactory), &DWriteFactory);//&DWriteFactory 初期化
if (FAILED(hr))
return hr;
//関数CreateTextFormat()
//第1引数：フォント名（L"メイリオ", L"Arial", L"Meiryo UI"等）
//第2引数：フォントコレクション（nullptr）
//第3引数：フォントの太さ（DWRITE_FONT_WEIGHT_NORMAL, DWRITE_FONT_WEIGHT_BOLD等）
//第4引数：フォントスタイル（DWRITE_FONT_STYLE_NORMAL, DWRITE_FONT_STYLE_OBLIQUE, DWRITE_FONT_STYLE_ITALIC）
//第5引数：フォントの幅（DWRITE_FONT_STRETCH_NORMAL,DWRITE_FONT_STRETCH_EXTRA_EXPANDED等）
//第6引数：フォントサイズ（20, 30等）
//第7引数：ロケール名（L""）
//第8引数：テキストフォーマット（&g_pTextFormat）
hr = DWriteFactory->CreateTextFormat(L"メイリオ", nullptr, DWRITE_FONT_WEIGHT_NORMAL, DWRITE_FONT_STYLE_NORMAL, DWRITE_FONT_STRETCH_NORMAL, 20, L"", &m_DWriteTextFormat);//&m_DWriteTextFormat 初期化
if (FAILED(hr))
return hr;
//関数SetTextAlignment()
//第1引数：テキストの配置（DWRITE_TEXT_ALIGNMENT_LEADING：前, DWRITE_TEXT_ALIGNMENT_TRAILING：後, DWRITE_TEXT_ALIGNMENT_CENTER：中央）
hr = m_DWriteTextFormat->SetTextAlignment(DWRITE_TEXT_ALIGNMENT_LEADING);
if (FAILED(hr))
return hr;
//関数CreateSolidColorBrush()
//第1引数：フォント色（D2D1::ColorF(D2D1::ColorF::Black)：黒, D2D1::ColorF(D2D1::ColorF(0.0f, 0.2f, 0.9f, 1.0f))：RGBA指定）
hr = m_D2DDeviceContext->CreateSolidColorBrush(D2D1::ColorF(D2D1::ColorF::Black), &m_D2DSolidBrush);//&m_D2DSolidBrush 初期化
if (FAILED(hr))
return hr;
return S_OK;
}
//--------------------------------------------------------------------------------------
// DirectX11::Render()：DirectX関係の描画
//--------------------------------------------------------------------------------------
void DirectX11::Render()
{
m_D3DDeviceContext->ClearRenderTargetView(m_D3DRenderTargetView.Get(), DirectX::Colors::Aquamarine);//m_D3DRenderTargetViewではなくm_D3DRenderTargetView.Get()
//------------------------------------------------------------
//初期設定
//------------------------------------------------------------
static double dElapsedTime = 0;//経過時間
//------------------------------------------------------------
//計算
//------------------------------------------------------------
dElapsedTime += Window::GetFrameTime();
//--------------------------★追加↓--------------------------

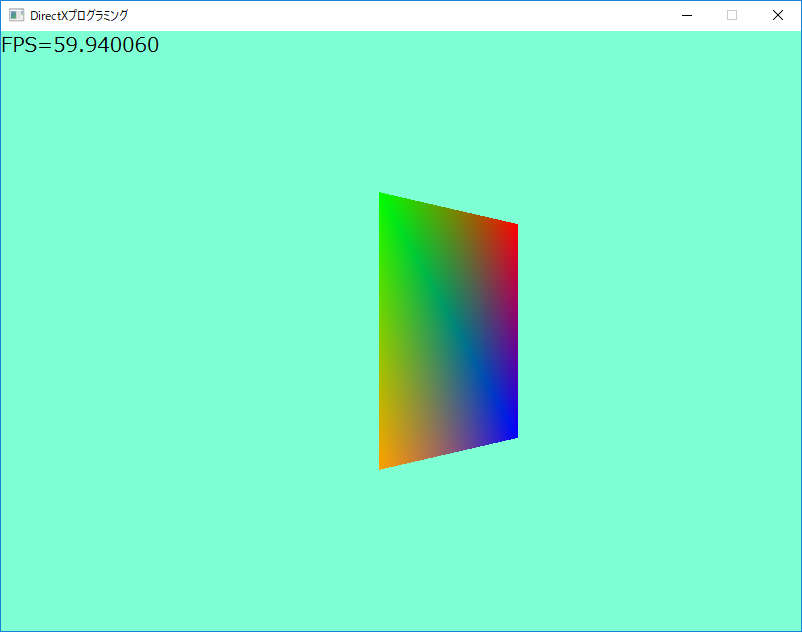

static FLOAT fAngle = 0;
fAngle += static_cast<FLOAT>(Window::GetFrameTime() / 1000.0);
m_matWorld = DirectX::XMMatrixRotationY(fAngle);//Y軸回転
static FLOAT fMoveX = 0;
static int iMoveX = 0;
if (iMoveX == 0)
{
fMoveX += static_cast<FLOAT>(Window::GetFrameTime() / 1000.0);
if (fMoveX > 1.5f)
{
iMoveX = 1;
}
}
else
{
fMoveX -= static_cast<FLOAT>(Window::GetFrameTime() / 1000.0);
if (fMoveX < -1.5f)
{
iMoveX = 0;
}
}
DirectX::XMMATRIX matMove;
matMove = DirectX::XMMatrixTranslation(fMoveX, 0, 0);//X方向移動
m_matWorld = m_matWorld * matMove;
//--------------------------★追加↑--------------------------
//------------------------------------------------------------
// 文字操作
//------------------------------------------------------------
//FPS表示用
WCHAR wcText1[256] = { 0 };
swprintf(wcText1, 256, L"FPS=%lf", Window::GetFps());
//------------------------------------------------------------
// 3D描画
//------------------------------------------------------------
//頂点の書き替え
D3D11_MAPPED_SUBRESOURCE msr;
m_D3DDeviceContext->Map(m_D3DVertexBuffer.Get(), 0, D3D11_MAP_WRITE_DISCARD, 0, &msr);
SimpleVertex vertices[] =
{
{ DirectX::XMFLOAT3(-0.5f, 0.5f, 0.0f), DirectX::XMFLOAT4(1.0f, 0.0f, 0.0f, 1.0f) },
{ DirectX::XMFLOAT3(0.5f, 0.5f, 0.0f), DirectX::XMFLOAT4(0.0f, 1.0f, 0.0f, 1.0f) },
{ DirectX::XMFLOAT3(-0.5f, -0.5f, 0.0f), DirectX::XMFLOAT4(0.0f, 0.0f, 1.0f, 1.0f) },
{ DirectX::XMFLOAT3(0.5f, -0.5f, 0.0f), DirectX::XMFLOAT4(1.0f, static_cast<FLOAT>(fabs(cos(dElapsedTime / 1000))), 0.0f, 1.0f) },
};
memcpy(msr.pData, vertices, sizeof(vertices));
m_D3DDeviceContext->Unmap(m_D3DVertexBuffer.Get(), 0);
//カメラの更新
ConstantBuffer cb;
cb.world = DirectX::XMMatrixTranspose(m_matWorld);
cb.view = DirectX::XMMatrixTranspose(m_matView);
cb.projection = DirectX::XMMatrixTranspose(m_matProjection);
m_D3DDeviceContext->Map(m_D3DConstantBuffer.Get(), 0, D3D11_MAP_WRITE_DISCARD, 0, &msr);
memcpy(msr.pData, (void*)(&cb), sizeof(cb));
m_D3DDeviceContext->Unmap(m_D3DConstantBuffer.Get(), 0);
//四角形の描画
m_D3DDeviceContext->DrawIndexed(6, 0, 0);
//------------------------------------------------------------
// 2D描画
//------------------------------------------------------------
m_D2DDeviceContext->BeginDraw();
m_D2DDeviceContext->DrawText(wcText1, ARRAYSIZE(wcText1) - 1, m_DWriteTextFormat.Get(), D2D1::RectF(0, 0, 800, 20), m_D2DSolidBrush.Get(), D2D1_DRAW_TEXT_OPTIONS_NONE);//m_DWriteTextFormatではなくm_DWriteTextFormat.Get()
m_D2DDeviceContext->EndDraw();
m_DXGISwapChain1->Present(0, 0);
}
#include "DirectX.h"
//--------------------------------------------------------------------------------------
// DirectX11::DirectX11()関数：コンストラクタ
//--------------------------------------------------------------------------------------
DirectX11::DirectX11()
{
m_matWorld = DirectX::XMMatrixIdentity();
m_matView = DirectX::XMMatrixIdentity();
m_matProjection = DirectX::XMMatrixIdentity();
}
//--------------------------------------------------------------------------------------
// DirectX11::~DirectX11関数：デストラクタ
//--------------------------------------------------------------------------------------
DirectX11::~DirectX11()
{
}
//--------------------------------------------------------------------------------------
// DirectX11::CompileShaderFromFile()：シェーダのコンパイル
//--------------------------------------------------------------------------------------
HRESULT DirectX11::CompileShaderFromFile(const WCHAR* wcFileName, LPCSTR lpEntryPoint, LPCSTR lpShaderModel, ID3DBlob** D3DBlob)
{
HRESULT hr = S_OK;
DWORD dwShaderFlags = D3DCOMPILE_ENABLE_STRICTNESS;
#ifdef _DEBUG
dwShaderFlags |= D3DCOMPILE_DEBUG;
dwShaderFlags |= D3DCOMPILE_SKIP_OPTIMIZATION;
#endif
Microsoft::WRL::ComPtr<ID3DBlob> D3DErrorBlob;
hr = D3DCompileFromFile(wcFileName, nullptr, nullptr, lpEntryPoint, lpShaderModel,
dwShaderFlags, 0, D3DBlob, &D3DErrorBlob);
if (FAILED(hr))
{
if (D3DErrorBlob)
{
OutputDebugStringA(reinterpret_cast<const char*>(D3DErrorBlob->GetBufferPointer()));
}
return hr;
}
return S_OK;
}
//--------------------------------------------------------------------------------------
// DirectX11::InitDevice()：DirectX関係の初期化
//--------------------------------------------------------------------------------------
HRESULT DirectX11::InitDevice()
{
//------------------------------------------------------------
// DirectX11とDirect2D 1.1の初期化
//------------------------------------------------------------
HRESULT hr = S_OK;
UINT uiDeviceFlags = D3D11_CREATE_DEVICE_BGRA_SUPPORT;//DirectX11上でDirect2Dを使用するために必要
#ifdef _DEBUG
uiDeviceFlags |= D3D11_CREATE_DEVICE_DEBUG;
#endif
D3D_DRIVER_TYPE drivertypes[] =
{
D3D_DRIVER_TYPE_HARDWARE,
D3D_DRIVER_TYPE_WARP,
D3D_DRIVER_TYPE_REFERENCE,
};
UINT uiDriverTypesNum = ARRAYSIZE(drivertypes);
D3D_FEATURE_LEVEL featurelevels[] =
{
D3D_FEATURE_LEVEL_11_1,
D3D_FEATURE_LEVEL_11_0,
D3D_FEATURE_LEVEL_10_1,
D3D_FEATURE_LEVEL_10_0,
};
UINT uiFeatureLevelsNum = ARRAYSIZE(featurelevels);
Microsoft::WRL::ComPtr<ID3D11Device> D3DDevice;
D3D_DRIVER_TYPE drivertype = D3D_DRIVER_TYPE_NULL;
D3D_FEATURE_LEVEL featurelevel = D3D_FEATURE_LEVEL_11_0;
for (UINT uiDriverTypeIndex = 0; uiDriverTypeIndex < uiDriverTypesNum; uiDriverTypeIndex++)
{
drivertype = drivertypes[uiDriverTypeIndex];
hr = D3D11CreateDevice(nullptr, drivertype, nullptr, uiDeviceFlags, featurelevels, uiFeatureLevelsNum,
D3D11_SDK_VERSION, &D3DDevice, &featurelevel, &m_D3DDeviceContext);//&D3DDevice &m_D3DDeviceContext 初期化
if (hr == E_INVALIDARG)
{
hr = D3D11CreateDevice(nullptr, drivertype, nullptr, uiDeviceFlags, &featurelevels[1], uiFeatureLevelsNum - 1,
D3D11_SDK_VERSION, &D3DDevice, &featurelevel, &m_D3DDeviceContext);//&D3DDevice &m_D3DDeviceContext 初期化
}
if (SUCCEEDED(hr))
break;
}
if (FAILED(hr))
return hr;
Microsoft::WRL::ComPtr<IDXGIDevice2> DXGIDevice2;
hr = D3DDevice.As(&DXGIDevice2);//D3DDevice->QueryInterface()ではなくD3DDevice.As()、&DXGIDevice2 初期化
if (FAILED(hr))
return hr;
Microsoft::WRL::ComPtr<ID2D1Factory1> D2DFactory1;
D2D1_FACTORY_OPTIONS factoryoptions = {};
#ifdef _DEBUG
factoryoptions.debugLevel = D2D1_DEBUG_LEVEL_INFORMATION;
#endif
hr = D2D1CreateFactory(D2D1_FACTORY_TYPE_SINGLE_THREADED, factoryoptions, D2DFactory1.GetAddressOf());//&D2DFactory1ではなくD2DFactory1.GetAddressOf()
if (FAILED(hr))
return hr;
Microsoft::WRL::ComPtr<ID2D1Device> D2D1Device;
hr = D2DFactory1->CreateDevice(DXGIDevice2.Get(), &D2D1Device);//DXGIDevice2ではなくDXGIDevice2.Get()、&D2D1Device 初期化
if (FAILED(hr))
return hr;
hr = D2D1Device->CreateDeviceContext(D2D1_DEVICE_CONTEXT_OPTIONS_NONE, &m_D2DDeviceContext);//&m_D2DDeviceContext 初期化
if (FAILED(hr))
return hr;
Microsoft::WRL::ComPtr<IDXGIAdapter> DXGIAdapter;
hr = DXGIDevice2->GetAdapter(&DXGIAdapter);//&DXGIAdapter 初期化
if (FAILED(hr))
return hr;
Microsoft::WRL::ComPtr<IDXGIFactory2> DXGIFactory2;
hr = DXGIAdapter->GetParent(IID_PPV_ARGS(&DXGIFactory2));//&DXGIFactory2 初期化
if (FAILED(hr))
return hr;
DXGI_SWAP_CHAIN_DESC1 desc = {};
desc.Width = Window::GetClientWidth();
desc.Height = Window::GetClientHeight();
desc.Format = DXGI_FORMAT_B8G8R8A8_UNORM;
desc.Stereo = FALSE;
desc.SampleDesc.Count = 1;
desc.SampleDesc.Quality = 0;
desc.BufferUsage = DXGI_USAGE_RENDER_TARGET_OUTPUT;
desc.BufferCount = 2;
desc.Scaling = DXGI_SCALING_STRETCH;
desc.SwapEffect = DXGI_SWAP_EFFECT_DISCARD;
desc.AlphaMode = DXGI_ALPHA_MODE_UNSPECIFIED;
hr = DXGIFactory2->CreateSwapChainForHwnd(D3DDevice.Get(), Window::GethWnd(), &desc, nullptr, nullptr, &m_DXGISwapChain1);//D3DDeviceではなくD3DDevice.Get()、&m_DXGISwapChain1 初期化
if (FAILED(hr))
return hr;
(void)DXGIDevice2->SetMaximumFrameLatency(1);
DXGIFactory2->MakeWindowAssociation(Window::GethWnd(), DXGI_MWA_NO_ALT_ENTER);//Alt+Enter時フルスクリーンを無効
Microsoft::WRL::ComPtr<IDXGISurface2> DXGISurface2;
hr = m_DXGISwapChain1->GetBuffer(0, IID_PPV_ARGS(&DXGISurface2));//&DXGISurface2 初期化
if (FAILED(hr))
return hr;
hr = m_D2DDeviceContext->CreateBitmapFromDxgiSurface(DXGISurface2.Get(),//DXGISurface2ではなくDXGISurface2.Get()
D2D1::BitmapProperties1(D2D1_BITMAP_OPTIONS_TARGET | D2D1_BITMAP_OPTIONS_CANNOT_DRAW,
D2D1::PixelFormat(DXGI_FORMAT_B8G8R8A8_UNORM, D2D1_ALPHA_MODE_IGNORE)), &m_D2DBitmap1);//&m_D2DBitmap1 初期化
if (FAILED(hr))
return hr;
m_D2DDeviceContext->SetTarget(m_D2DBitmap1.Get());//D2DBitmap1ではなくD2DBitmap1.Get()
Microsoft::WRL::ComPtr<ID3D11Texture2D> D3DTexture2D;
hr = m_DXGISwapChain1->GetBuffer(0, IID_PPV_ARGS(&D3DTexture2D));//&D3DTexture2D 初期化
if (FAILED(hr))
return hr;
hr = D3DDevice->CreateRenderTargetView(D3DTexture2D.Get(), nullptr, &m_D3DRenderTargetView);//D3DTexture2DではなくD3DTexture2D.Get()、&m_D3DRenderTargetView 初期化
if (FAILED(hr))
return hr;
m_D3DDeviceContext->OMSetRenderTargets(1, m_D3DRenderTargetView.GetAddressOf(), nullptr);//&m_D3DRenderTargetViewではなくm_D3DRenderTargetView.GetAddressOf()
D3D11_VIEWPORT vp;
vp.Width = (FLOAT)Window::GetClientWidth();
vp.Height = (FLOAT)Window::GetClientHeight();
vp.MinDepth = 0.0f;
vp.MaxDepth = 1.0f;
vp.TopLeftX = 0;
vp.TopLeftY = 0;
m_D3DDeviceContext->RSSetViewports(1, &vp);
//バーテックスシェーダのコンパイル
Microsoft::WRL::ComPtr<ID3DBlob> D3DBlobVS;
hr = CompileShaderFromFile(L"VertexShader.hlsl", "main", "vs_5_0", &D3DBlobVS);
if (FAILED(hr))
return hr;
//バーテックスシェーダの作成
hr = D3DDevice->CreateVertexShader(D3DBlobVS->GetBufferPointer(), D3DBlobVS->GetBufferSize(), nullptr, &m_D3DVertexShader);
if (FAILED(hr))
return hr;
//インプットレイアウトの定義
D3D11_INPUT_ELEMENT_DESC layout[] =
{
//5番目のパラメータ：先頭からのバイト数4バイト(FLAOT)×3(RGB)=12
{ "POSITION", 0, DXGI_FORMAT_R32G32B32_FLOAT, 0, 0, D3D11_INPUT_PER_VERTEX_DATA, 0 },
{ "COLOR", 0, DXGI_FORMAT_R32G32B32A32_FLOAT, 0, 12, D3D11_INPUT_PER_VERTEX_DATA, 0 },
};
UINT uiElements = ARRAYSIZE(layout);
//インプットレイアウトの作成
Microsoft::WRL::ComPtr<ID3D11InputLayout> D3DInputLayout;
hr = D3DDevice->CreateInputLayout(layout, uiElements, D3DBlobVS->GetBufferPointer(),
D3DBlobVS->GetBufferSize(), &D3DInputLayout);
if (FAILED(hr))
return hr;
//インプットレイアウトの設定
m_D3DDeviceContext->IASetInputLayout(D3DInputLayout.Get());
//ピクセルシェーダのコンパイル
Microsoft::WRL::ComPtr<ID3DBlob> D3DBlobPS;
hr = CompileShaderFromFile(L"PixelShader.hlsl", "main", "ps_5_0", &D3DBlobPS);
if (FAILED(hr))
return hr;
//ピクセルシェーダの作成
hr = D3DDevice->CreatePixelShader(D3DBlobPS->GetBufferPointer(), D3DBlobPS->GetBufferSize(), nullptr, &m_D3DPixelShader);
if (FAILED(hr))
return hr;
//バーテックスバッファの作成
SimpleVertex vertices[] =
{
{ DirectX::XMFLOAT3(-0.5f, 0.5f, 0.0f), DirectX::XMFLOAT4(1.0f, 0.0f, 0.0f, 1.0f) },
{ DirectX::XMFLOAT3(0.5f, 0.5f, 0.0f), DirectX::XMFLOAT4(0.0f, 1.0f, 0.0f, 1.0f) },
{ DirectX::XMFLOAT3(-0.5f, -0.5f, 0.0f), DirectX::XMFLOAT4(0.0f, 0.0f, 1.0f, 1.0f) },
{ DirectX::XMFLOAT3(0.5f, -0.5f, 0.0f), DirectX::XMFLOAT4(1.0f, 1.0f, 0.0f, 1.0f) },
};
D3D11_BUFFER_DESC bd = {};
bd.Usage = D3D11_USAGE_DYNAMIC;
bd.ByteWidth = sizeof(SimpleVertex) * 4;
bd.BindFlags = D3D11_BIND_VERTEX_BUFFER;
bd.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
D3D11_SUBRESOURCE_DATA sub = {};
sub.pSysMem = vertices;
hr = D3DDevice->CreateBuffer(&bd, &sub, &m_D3DVertexBuffer);
if (FAILED(hr))
return hr;
//バーテックスバッファの設定
UINT uiStride = sizeof(SimpleVertex);
UINT uiOffset = 0;
m_D3DDeviceContext->IASetVertexBuffers(0, 1, m_D3DVertexBuffer.GetAddressOf(), &uiStride, &uiOffset);
//インデックスバッファの作成
Microsoft::WRL::ComPtr<ID3D11Buffer> D3DIndexBuffer;
WORD indices[] =
{
0,1,2,
2,1,3,
};
bd.Usage = D3D11_USAGE_DEFAULT;
bd.ByteWidth = sizeof(WORD) * 6;
bd.BindFlags = D3D11_BIND_INDEX_BUFFER;
bd.CPUAccessFlags = 0;
sub.pSysMem = indices;
hr = D3DDevice->CreateBuffer(&bd, &sub, &D3DIndexBuffer);
if (FAILED(hr))
return hr;
//インデックスバッファの設定
m_D3DDeviceContext->IASetIndexBuffer(D3DIndexBuffer.Get(), DXGI_FORMAT_R16_UINT, 0);
//プリミティブトポロジの設定
m_D3DDeviceContext->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
//コンスタントバッファの作成
bd.Usage = D3D11_USAGE_DYNAMIC;
bd.ByteWidth = sizeof(ConstantBuffer);
bd.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
bd.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
hr = D3DDevice->CreateBuffer(&bd, nullptr, &m_D3DConstantBuffer);
if (FAILED(hr))
return hr;
//--------------------------★追加↓--------------------------
//ラスタライザの作成
Microsoft::WRL::ComPtr<ID3D11RasterizerState> D3DRasterizerState;
D3D11_RASTERIZER_DESC ras = {};
//D3D11_FILL_WIREFRAME（ワイヤーフレーム） D3D11_FILL_SOLID（ソリッド）
ras.FillMode = D3D11_FILL_SOLID;
//D3D11_CULL_NONE（カリングなし：裏表描画） D3D11_CULL_FRONT（表面カリング：裏面描画） D3D11_CULL_BACK（裏面カリング：表面描画）
ras.CullMode = D3D11_CULL_NONE;
hr = D3DDevice->CreateRasterizerState(&ras, &D3DRasterizerState);
if (FAILED(hr))
return hr;
//ラスタライザの設定
m_D3DDeviceContext->RSSetState(D3DRasterizerState.Get());
//--------------------------★追加↑--------------------------
//ワールドマトリックスの設定
m_matWorld = DirectX::XMMatrixIdentity();
//ビューマトリックスの設定
DirectX::XMVECTOR vecEye = DirectX::XMVectorSet(0.0f, 0.0f, -3.0f, 0.0f);//カメラの位置//★---変更---
DirectX::XMVECTOR vecFocus = DirectX::XMVectorSet(0.0f, 0.0f, 0.0f, 0.0f);//カメラの焦点
DirectX::XMVECTOR vecUp = DirectX::XMVectorSet(0.0f, 1.0f, 0.0f, 0.0f);//カメラの上方向
m_matView = DirectX::XMMatrixLookAtLH(vecEye, vecFocus, vecUp);
//プロジェクションマトリックスの設定
m_matProjection = DirectX::XMMatrixPerspectiveFovLH(DirectX::XM_PIDIV4, static_cast<FLOAT>(Window::GetClientWidth()) / static_cast<FLOAT>(Window::GetClientHeight()), 0.01f, 100.0f);//★---変更---
//シェーダのセット
m_D3DDeviceContext->VSSetShader(m_D3DVertexShader.Get(), nullptr, 0);
m_D3DDeviceContext->VSSetConstantBuffers(0, 1, m_D3DConstantBuffer.GetAddressOf());
m_D3DDeviceContext->PSSetShader(m_D3DPixelShader.Get(), nullptr, 0);
//------------------------------------------------------------
// DirectWriteの初期化
//------------------------------------------------------------
Microsoft::WRL::ComPtr<IDWriteFactory> DWriteFactory;
hr = DWriteCreateFactory(DWRITE_FACTORY_TYPE_SHARED, __uuidof(IDWriteFactory), &DWriteFactory);//&DWriteFactory 初期化
if (FAILED(hr))
return hr;
//関数CreateTextFormat()
//第1引数：フォント名（L"メイリオ", L"Arial", L"Meiryo UI"等）
//第2引数：フォントコレクション（nullptr）
//第3引数：フォントの太さ（DWRITE_FONT_WEIGHT_NORMAL, DWRITE_FONT_WEIGHT_BOLD等）
//第4引数：フォントスタイル（DWRITE_FONT_STYLE_NORMAL, DWRITE_FONT_STYLE_OBLIQUE, DWRITE_FONT_STYLE_ITALIC）
//第5引数：フォントの幅（DWRITE_FONT_STRETCH_NORMAL,DWRITE_FONT_STRETCH_EXTRA_EXPANDED等）
//第6引数：フォントサイズ（20, 30等）
//第7引数：ロケール名（L""）
//第8引数：テキストフォーマット（&g_pTextFormat）
hr = DWriteFactory->CreateTextFormat(L"メイリオ", nullptr, DWRITE_FONT_WEIGHT_NORMAL, DWRITE_FONT_STYLE_NORMAL, DWRITE_FONT_STRETCH_NORMAL, 20, L"", &m_DWriteTextFormat);//&m_DWriteTextFormat 初期化
if (FAILED(hr))
return hr;
//関数SetTextAlignment()
//第1引数：テキストの配置（DWRITE_TEXT_ALIGNMENT_LEADING：前, DWRITE_TEXT_ALIGNMENT_TRAILING：後, DWRITE_TEXT_ALIGNMENT_CENTER：中央）
hr = m_DWriteTextFormat->SetTextAlignment(DWRITE_TEXT_ALIGNMENT_LEADING);
if (FAILED(hr))
return hr;
//関数CreateSolidColorBrush()
//第1引数：フォント色（D2D1::ColorF(D2D1::ColorF::Black)：黒, D2D1::ColorF(D2D1::ColorF(0.0f, 0.2f, 0.9f, 1.0f))：RGBA指定）
hr = m_D2DDeviceContext->CreateSolidColorBrush(D2D1::ColorF(D2D1::ColorF::Black), &m_D2DSolidBrush);//&m_D2DSolidBrush 初期化
if (FAILED(hr))
return hr;
return S_OK;
}
//--------------------------------------------------------------------------------------
// DirectX11::Render()：DirectX関係の描画
//--------------------------------------------------------------------------------------
void DirectX11::Render()
{
m_D3DDeviceContext->ClearRenderTargetView(m_D3DRenderTargetView.Get(), DirectX::Colors::Aquamarine);//m_D3DRenderTargetViewではなくm_D3DRenderTargetView.Get()
//------------------------------------------------------------
//初期設定
//------------------------------------------------------------
static double dElapsedTime = 0;//経過時間
//------------------------------------------------------------
//計算
//------------------------------------------------------------
dElapsedTime += Window::GetFrameTime();
//--------------------------★追加↓--------------------------
static FLOAT fAngle = 0;
fAngle += static_cast<FLOAT>(Window::GetFrameTime() / 1000.0);
m_matWorld = DirectX::XMMatrixRotationY(fAngle);//Y軸回転
static FLOAT fMoveX = 0;
static int iMoveX = 0;
if (iMoveX == 0)
{
fMoveX += static_cast<FLOAT>(Window::GetFrameTime() / 1000.0);
if (fMoveX > 1.5f)
{
iMoveX = 1;
}
}
else
{
fMoveX -= static_cast<FLOAT>(Window::GetFrameTime() / 1000.0);
if (fMoveX < -1.5f)
{
iMoveX = 0;
}
}
DirectX::XMMATRIX matMove;
matMove = DirectX::XMMatrixTranslation(fMoveX, 0, 0);//X方向移動
m_matWorld = m_matWorld * matMove;
//--------------------------★追加↑--------------------------
//------------------------------------------------------------
// 文字操作
//------------------------------------------------------------
//FPS表示用
WCHAR wcText1[256] = { 0 };
swprintf(wcText1, 256, L"FPS=%lf", Window::GetFps());
//------------------------------------------------------------
// 3D描画
//------------------------------------------------------------
//頂点の書き替え
D3D11_MAPPED_SUBRESOURCE msr;
m_D3DDeviceContext->Map(m_D3DVertexBuffer.Get(), 0, D3D11_MAP_WRITE_DISCARD, 0, &msr);
SimpleVertex vertices[] =
{
{ DirectX::XMFLOAT3(-0.5f, 0.5f, 0.0f), DirectX::XMFLOAT4(1.0f, 0.0f, 0.0f, 1.0f) },
{ DirectX::XMFLOAT3(0.5f, 0.5f, 0.0f), DirectX::XMFLOAT4(0.0f, 1.0f, 0.0f, 1.0f) },
{ DirectX::XMFLOAT3(-0.5f, -0.5f, 0.0f), DirectX::XMFLOAT4(0.0f, 0.0f, 1.0f, 1.0f) },
{ DirectX::XMFLOAT3(0.5f, -0.5f, 0.0f), DirectX::XMFLOAT4(1.0f, static_cast<FLOAT>(fabs(cos(dElapsedTime / 1000))), 0.0f, 1.0f) },
};
memcpy(msr.pData, vertices, sizeof(vertices));
m_D3DDeviceContext->Unmap(m_D3DVertexBuffer.Get(), 0);
//カメラの更新
ConstantBuffer cb;
cb.world = DirectX::XMMatrixTranspose(m_matWorld);
cb.view = DirectX::XMMatrixTranspose(m_matView);
cb.projection = DirectX::XMMatrixTranspose(m_matProjection);
m_D3DDeviceContext->Map(m_D3DConstantBuffer.Get(), 0, D3D11_MAP_WRITE_DISCARD, 0, &msr);
memcpy(msr.pData, (void*)(&cb), sizeof(cb));
m_D3DDeviceContext->Unmap(m_D3DConstantBuffer.Get(), 0);
//四角形の描画
m_D3DDeviceContext->DrawIndexed(6, 0, 0);
//------------------------------------------------------------
// 2D描画
//------------------------------------------------------------
m_D2DDeviceContext->BeginDraw();
m_D2DDeviceContext->DrawText(wcText1, ARRAYSIZE(wcText1) - 1, m_DWriteTextFormat.Get(), D2D1::RectF(0, 0, 800, 20), m_D2DSolidBrush.Get(), D2D1_DRAW_TEXT_OPTIONS_NONE);//m_DWriteTextFormatではなくm_DWriteTextFormat.Get()
m_D2DDeviceContext->EndDraw();
m_DXGISwapChain1->Present(0, 0);
}
（５）VertexShader.hlsl
cbuffer ConstantBuffer : register(b0)
{
matrix world;
matrix view;
matrix projection;
}
struct VS_OUTPUT
{
float4 pos : SV_POSITION;
float4 color : COLOR0;
};
//--------------------------------------------------------------------------------------
// バーテックスシェーダ
//--------------------------------------------------------------------------------------
VS_OUTPUT main(float4 pos : POSITION, float4 color : COLOR)
{
VS_OUTPUT output = (VS_OUTPUT)0;
output.pos = mul(pos, world);
output.pos = mul(output.pos, view);
output.pos = mul(output.pos, projection);
output.color = color;
return output;
}
{
matrix world;
matrix view;
matrix projection;
}
struct VS_OUTPUT
{
float4 pos : SV_POSITION;
float4 color : COLOR0;
};
//--------------------------------------------------------------------------------------
// バーテックスシェーダ
//--------------------------------------------------------------------------------------
VS_OUTPUT main(float4 pos : POSITION, float4 color : COLOR)
{
VS_OUTPUT output = (VS_OUTPUT)0;
output.pos = mul(pos, world);
output.pos = mul(output.pos, view);
output.pos = mul(output.pos, projection);
output.color = color;
return output;
}
（６）PixelShader.hlsl
struct VS_OUTPUT
{
float4 pos : SV_POSITION;
float4 color : COLOR0;
};
//--------------------------------------------------------------------------------------
// ピクセルシェーダ
//--------------------------------------------------------------------------------------
float4 main(VS_OUTPUT input) : SV_TARGET
{
return input.color;
}
{
float4 pos : SV_POSITION;
float4 color : COLOR0;
};
//--------------------------------------------------------------------------------------
// ピクセルシェーダ
//--------------------------------------------------------------------------------------
float4 main(VS_OUTPUT input) : SV_TARGET
{
return input.color;
}
★部分を追加または変更
３．四角形がY軸回転およびX方向移動する。
0 件のコメント:
コメントを投稿
